NCB5-18GM40-N0 5M
NCB5-18GM40-N0 5M

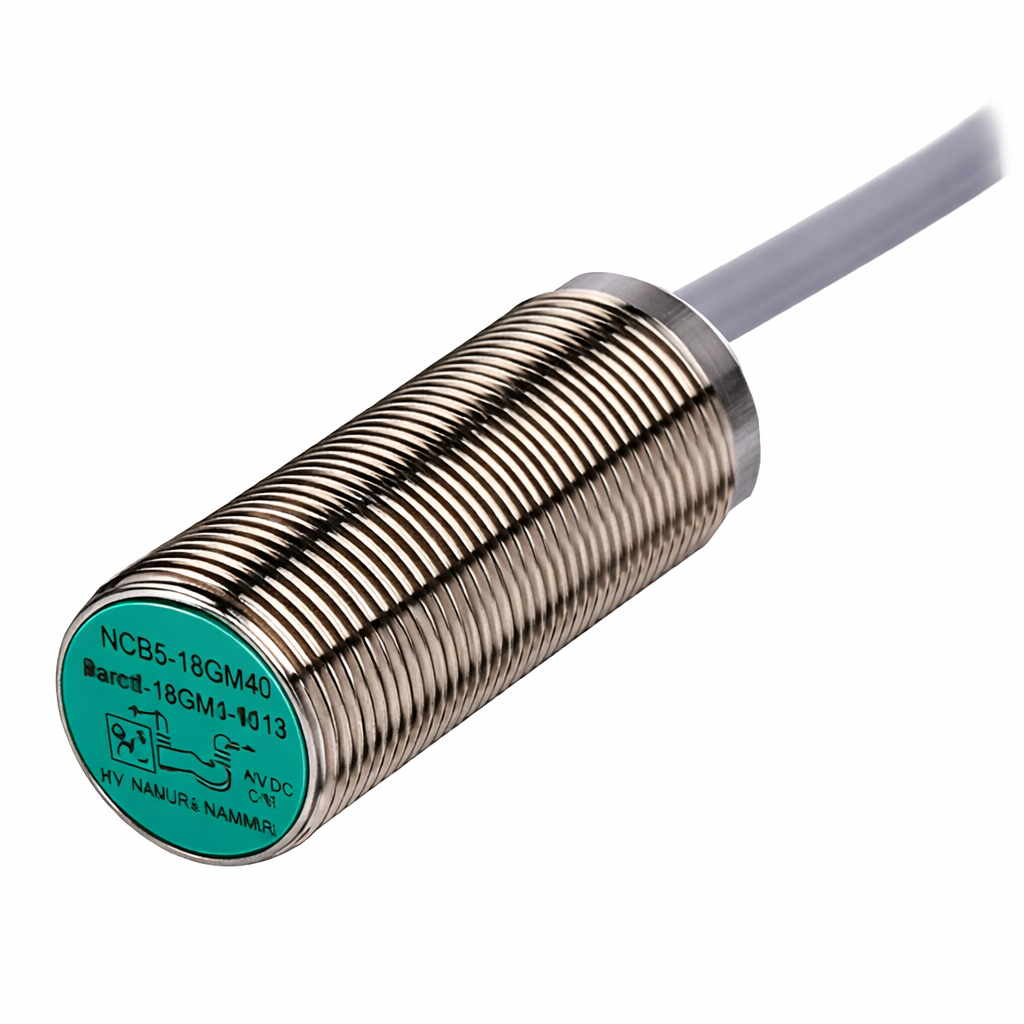

The NCB5-18GM40-N0 5M (181138) is a sturdy inductive proximity sensor built for accurate metal detection in industrial automation. Its 18 mm cylindrical body makes installation straightforward on machines and panels, while the contactless sensing design ensures long-lasting, wear-free performance. With a NAMUR output, it’s well-suited for hazardous or intrinsically safe environments where reliable switching is vital. The 5-meter PVC cable adds flexibility and secure signal transmission, making this sensor a durable, low-maintenance solution for demanding applications.
Description
Key Features
- Accurate metal detection with a 5 mm sensing range
- Compact 18 mm cylindrical housing for easy mounting
- NAMUR output for safety-critical environments
- Non-contact operation to reduce wear and downtime
- 5 m PVC cable for extended and flexible installation
- Stable switching performance in industrial conditions
Typical Applications
- Position sensing in automated machinery
- Metal part detection on assembly lines
- Conveyor, sorting, and material handling systems
- Hazardous and intrinsically safe industrial areas
- Packaging and process automation equipment
Technical Specifications
- Product Name: NCB5-18GM40-N0 5M
- Part Number: 181138
- Sensor Type: Inductive Proximity Sensor
- Body Style: Cylindrical
- Sensing Distance: 5 mm
- Sensor Diameter: 18 mm
- Output Type: NAMUR
- Connection: PVC Cable, 5 m
- Weight: 109.3 g
