NBB2-8GM40-E3-V3
NBB2-8GM40-E3-V3

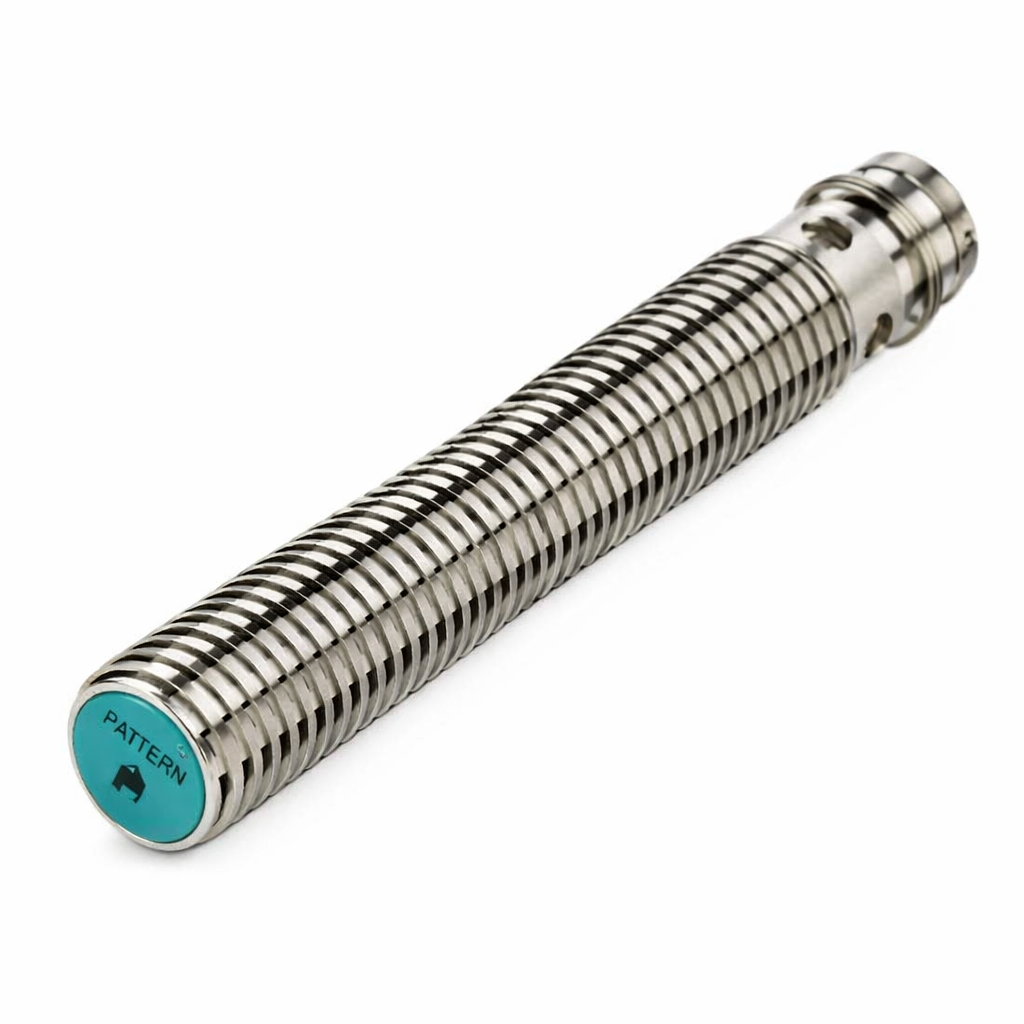

The NBB2-8GM40-E3-V3 is an inductive proximity sensor compactly built for precise and reliable metal detection in industrial automation environments. This proximity sensor has a nominal sensing distance of 2 mm and a compact cylindrical body that helps in those areas where the space is very small, but the requirements toward accuracy must still be pronounced.
The sensor is designed to operate consistently and uses non-contact detection to identify metallic targets without wear. The PNP normally open output and rugged construction ensure easy installation in the most modern control systems, providing reliable operation even in severe environments.
Description
Key Features
- 2 mm sensing distance for accurate short-range metal detection
- Contactless operation to reduce wear and maintenance
- Compact 8 mm cylindrical body ideal for tight installation spaces
- 3-wire DC, PNP, Normally Open output for straightforward integration
- Stable and repeatable switching for reliable system performance
- M8 x 1, 3-pin connector for secure and simple wiring
Typical Applications
- Automated assembly and production lines
- Machine position and presence detection
- Small-part handling and precision equipment
- Packaging and labeling machines
- General industrial automation systems
Technical Specifications
- Product Name: NBB2-8GM40-E3-V3
- Part Number: 189946
- Sensor Type: Inductive Proximity Sensor
- Body Style: Cylindrical
- Sensing Distance: 2 mm
- Sensor Diameter: 8 mm
- Operating Voltage: DC
- Output Type: 3-wire, PNP, Normally Open
- Connection: M8 x 1, 3-pin
- Weight: 89.6 g
