NBB15-30GM50-E0-V1
NBB15-30GM50-E0-V1

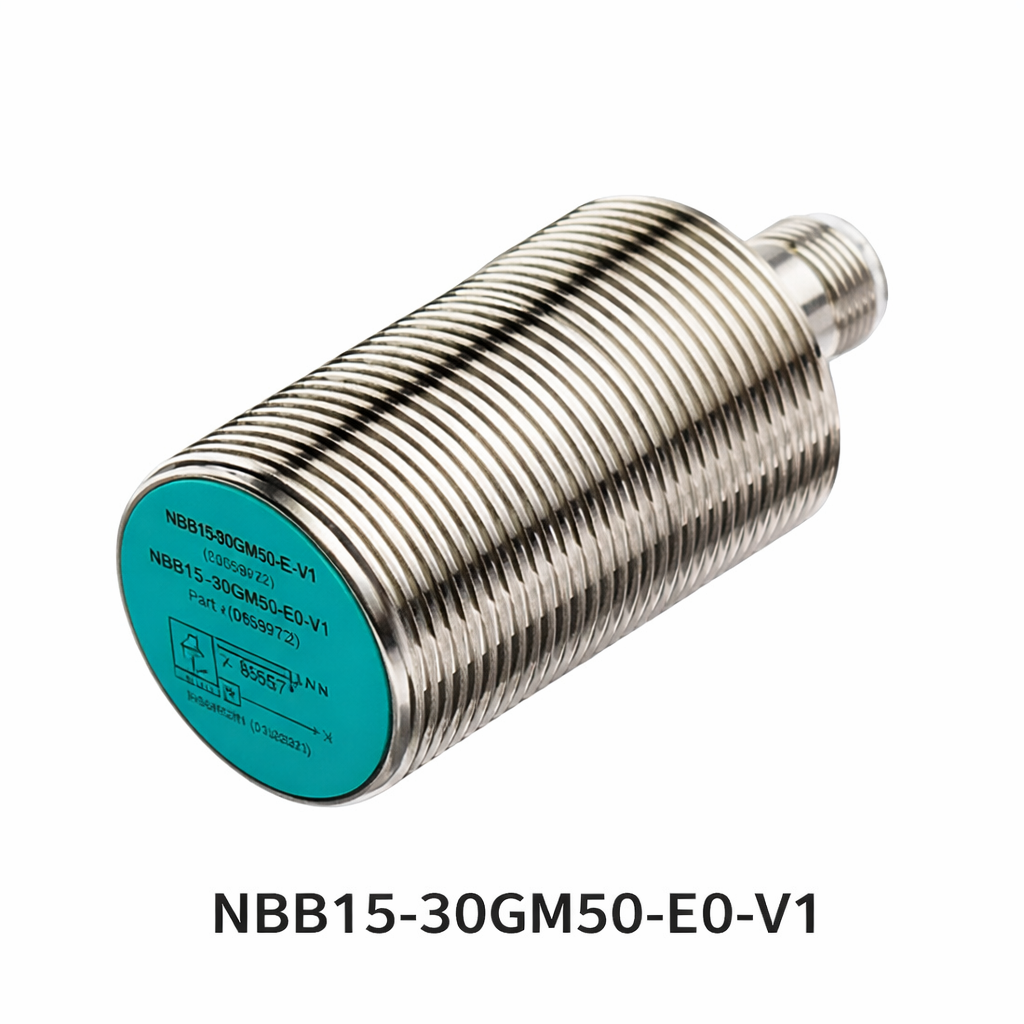

The NBB15-30GM50-E0-V1 (085972) is a reliable inductive proximity sensor built for accurate metal detection in industrial automation systems. Its 30 mm cylindrical housing ensures strong mechanical stability and easy installation across various machine setups.
Featuring contact-free sensing, the sensor reduces wear and supports long service life. The 3-wire DC, NPN, normally open output allows easy PLC integration, while the M12 x 1, 4-pin connector ensures a secure and vibration-resistant connection for consistent industrial performance.
Description
Key Features
- Detects metal objects reliably up to 15 mm
- Rugged 30 mm cylindrical housing for secure installation
- 3-wire DC NPN, normally open output for simple PLC integration
- Contactless sensing reduces wear and maintenance
- M12 x 1, 4-pin connector for stable and vibration-resistant connection
- Designed for dependable operation in industrial environments
Typical Applications
- Position sensing in automated machinery
- Metal detection on assembly lines
- Conveyor and material handling systems
- Packaging, inspection, and sorting machines
- General industrial automation
Technical Specifications
- Product Name: NBB15-30GM50-E0-V1
- Part Number: 085972
- Sensor Type: Inductive proximity sensor
- Housing: Cylindrical
- Sensing Distance: 15 mm
- Diameter: 30 mm
- Output: 3-wire, DC, NPN, normally open
- Connection: M12 x 1, 4-pin
- Weight: 105.7 g
