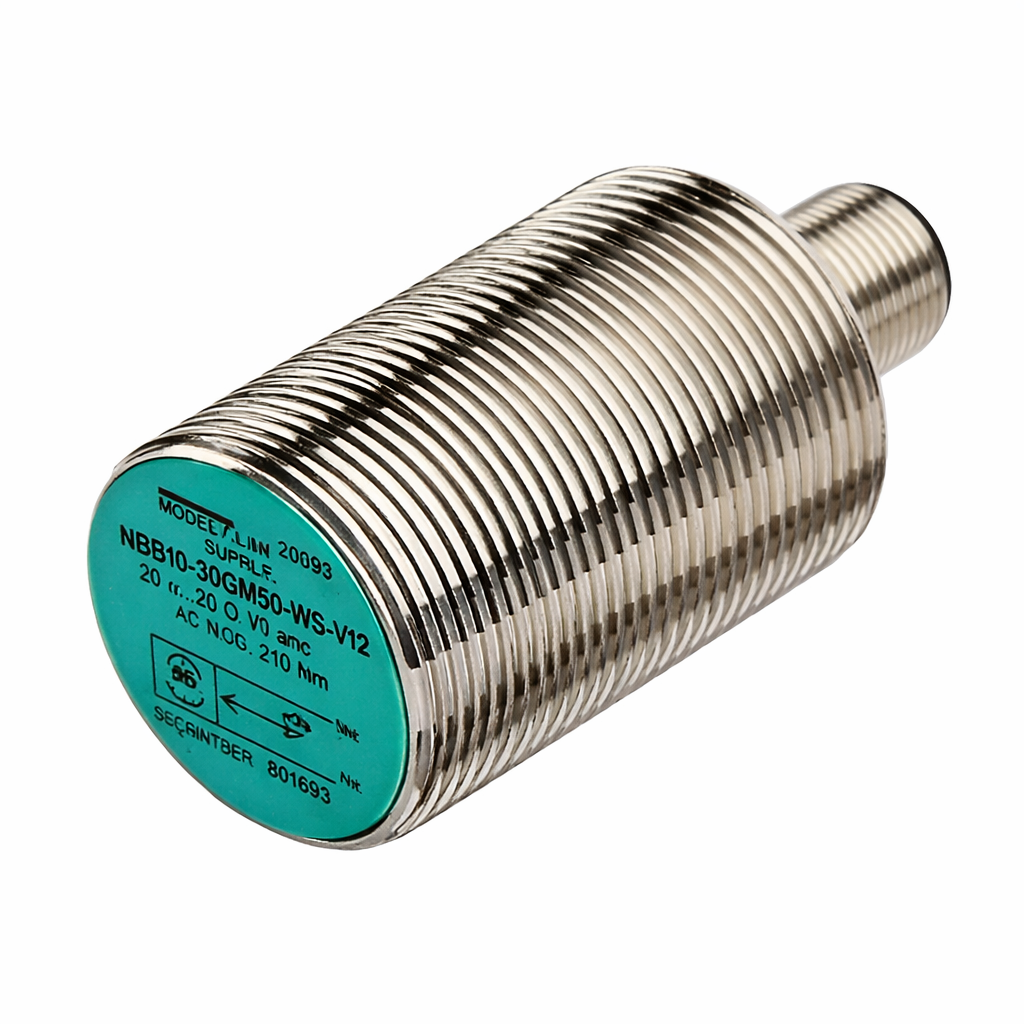

NBB10-30GM50-WS-V12
NBB10-30GM50-WS-V12
The NBB10-30GM50-WS-V12 (801693) is a durable inductive proximity sensor built for dependable metal detection in industrial environments. Its cylindrical design supports easy installation, while contact free sensing helps maintain consistent performance over time.
Designed to integrate smoothly into automation systems, this sensor delivers accurate detection with a strong, long lasting build. It is a practical choice for applications that demand reliability, efficiency, and minimal maintenance.
Description
Key Features
- Accurate metal detection with a 10 mm sensing distance
- 30 mm cylindrical body for stable and easy installation
- 2 wire AC, normally open output configuration
- Contact free operation for reduced wear and long service life
- 1/2 inch 20 UN, 3 pin connector for secure connectivity
- Reliable performance in industrial environments
Typical Applications
- Position and presence detection in industrial machinery
- Monitoring metal components on production and assembly lines
- Use in conveyor and material handling systems
- Packaging, sorting, and inspection equipment
- General factory and process automation
Technical Specifications
- Product Name: NBB10-30GM50-WS-V12
- Part Number: 801693
- Sensor Type: Inductive Proximity Sensor
- Body Style: Cylindrical
- Sensing Distance: 10 mm
- Sensor Diameter: 30 mm
- Output Type: 2 wire, AC, Normally Open
- Connection: 1/2 inch 20 UN, 3 pin
- Weight: 166.7 g
Valfux Electric Private Limited is a professional supplier specializing in original brand-new PLC and DCS automation parts from world-renowned manufacturers. Our extensive inventory features trusted brands such as Allen Bradley, Bently Nevada, Honeywell, ABB, GE Fanuc, Siemens, Invensys Triconex, ICS Triplex, Foxboro, Yokogawa, Schneider Electric, HIMA, and more.
