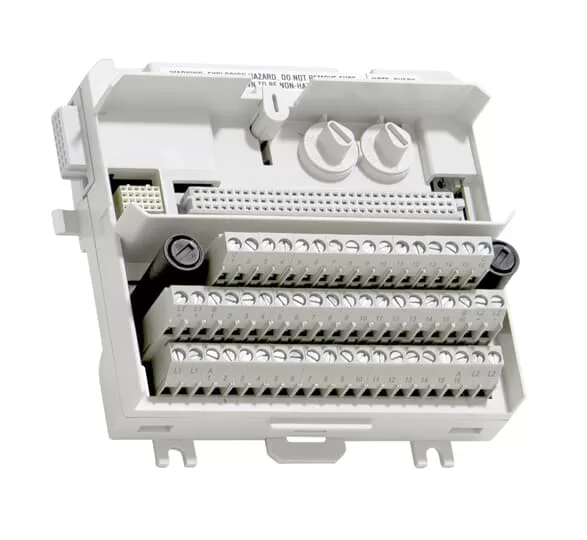

The TU830V1 is a high-performance Module Termination Unit (MTU) designed for connecting field wiring to I/O modules in ABB automation systems. This passive unit supports up to 16 I/O channels, each with two I/O connections and one ZP (zero potential) connection, allowing for efficient and reliable signal and power distribution.

With two isolated process voltage groups, each protected by a 6.3 A fuse, the TU830V1 ensures safe operation across various automation environments. The unit can handle up to 50 V and 2 A per channel, making it suitable for a wide range of industrial applications. The TU830V1 also handles ModuleBus distribution and assigns the correct address to I/O modules by shifting position signals between MTUs.

Key Features:

• Supports up to 16 I/O channels with 3-wire connections

• Dual process voltage groups, each with a 6.3 A fuse

• ModuleBus connectivity and signal address shifting

• Mechanical keying to prevent incorrect I/O module installation

• Built-in latching mechanism for DIN rail grounding and mounting

• Suitable for ABB I/O module installations in industrial environments

Benefits:

• Simplifies I/O wiring and power distribution

• Enhances system safety with fuses and isolated voltage groups

• Prevents wiring errors with mechanical keying

• Reliable and modular for scalable control systems

Applications: Industrial automation, factory control systems, process control, and distributed I/O solutions
