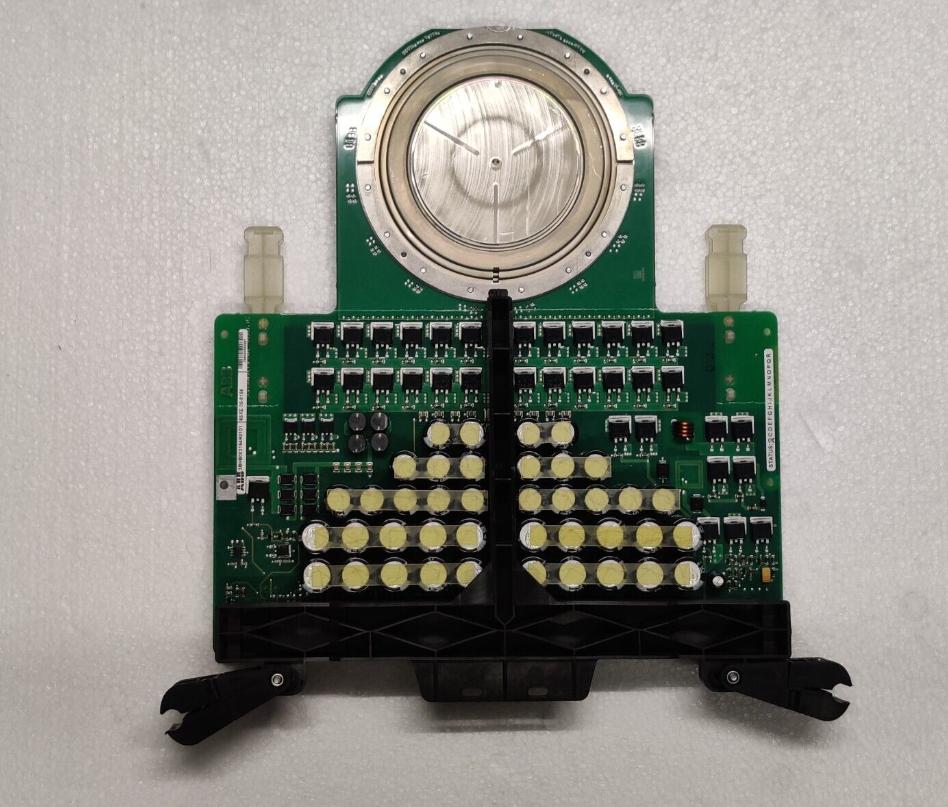

ABB 5SHX2645L0004 IGCT Module – High-Voltage, Rugged Power Device

The ABB 5SHX2645L0004 is a high-performance insulated gate commutated thyristor (IGCT) module, engineered for demanding industrial environments. With a voltage rating of 4500V and a 91 mm diameter, this IGCT is ideal for high-reliability applications requiring efficient power handling and robust operation.

Designed for critical systems such as medium-voltage drives, power converters, and industrial protection systems, the 5SHX2645L0004 delivers outstanding durability, thermal performance, and switching efficiency.

🔍 Key Features:

• Part Number: 5SHX2645L0004

• Device Type: IGCT (Insulated Gate Commutated Thyristor)

• Voltage Rating: 4500V

• Diameter: 91 mm

• High surge capability and excellent current handling

• Designed for harsh and continuous industrial use

🏭 Applications:

• Medium-voltage motor drives

• Industrial power converters

• HVDC and FACTS systems

• Protective switching circuits

• High-reliability power electronics

📐 Technical Specifications:

• Voltage Rating: 4500V

• Diameter: 91 mm

• IGCT Type: Reverse conducting

• Design: Hermetically sealed for durability

• Current Ratings: Optimized for high switching and conduction

🎯 Benefits:

• High efficiency and low power losses

• Reliable operation in harsh environments

• Extended service life

• Ideal for compact, high-power designs

• Backed by ABB’s proven engineering and quality assurance
