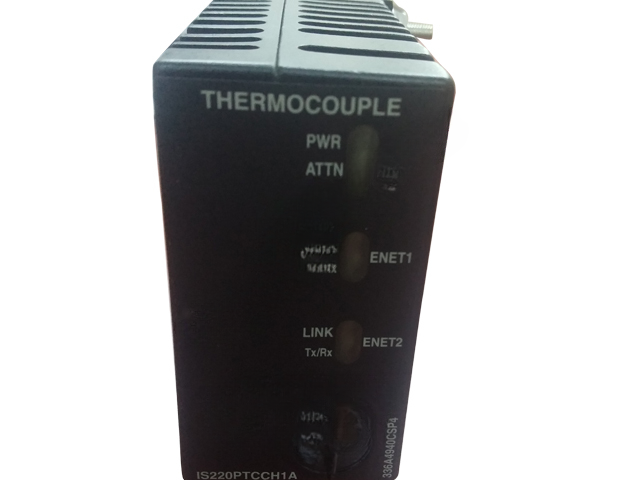

The IS220PTCCH1A, REV G is a specialized thermocouple input module built for use within the GE Mark VIe control system. Designed to acquire and process temperature data from various thermocouple sensors, this module plays an essential role in delivering real-time, accurate temperature feedback for turbines, compressors, boilers, and other industrial equipment.

It accommodates up to 12 independent thermocouple inputs, offering compatibility with major sensor types such as E, J, K, N, R, S, and T. With built-in cold junction compensation (CJC), the module ensures stable temperature readings even with environmental fluctuations. Its architecture provides excellent common-mode noise rejection and isolation, making it ideal for high-noise industrial environments.

The IS220PTCCH1A module is designed for direct mounting on I/O terminal boards and features hot-swap capability, allowing for safe and quick replacements without system downtime. Built-in status LEDs offer instant diagnostics, ensuring technicians can quickly identify and address issues during operation. The module communicates via Ethernet, providing high-speed data transmission and seamless integration with GE Mark VIe systems.

Its robust construction makes it highly reliable for deployment in power generation, oil & gas, and process industries, where precise temperature data is critical for performance and safety. Additionally, it supports both simplex and redundant configurations for enhanced system availability and reliability.

This module meets strict industrial standards and ensures long-term performance in demanding field applications, where accurate and consistent temperature monitoring is essential for operational efficiency and system protection.

This module seamlessly integrates with Mark VIe systems, acting as a bridge between the control logic and the field temperature sensors. It supports cold junction compensation (CJC) onboard, eliminating the need for external references and ensuring consistent and trustworthy measurements under varying ambient conditions.

⭐ Key Features:

• Supports up to 12 thermocouple channels

• Compatible with multiple thermocouple types (E, J, K, N, R, S, T)

• Integrated cold junction compensation (CJC)

• High noise immunity and common-mode rejection

• Plug-and-play with Mark VIe systems

• Real-time diagnostics and LED status indicators

• Rugged design for harsh industrial conditions

• Supports simplex and redundant configurations

• Hot-swappable for easy field replacement

• Ethernet-based I/O communication
