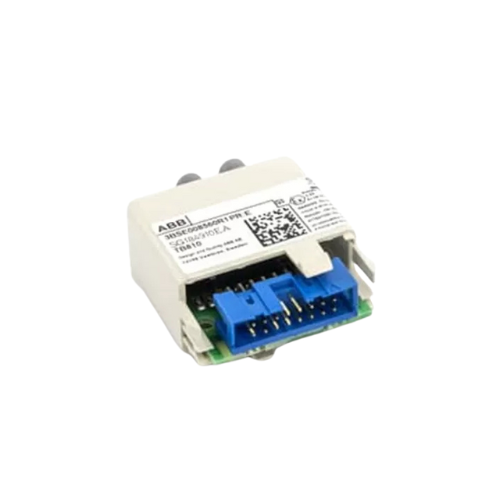

ABB TB810 3BSE008560R1
Description
General Information
Product ID:
3BSE008560R1
ABB Type Designation:
TB810
Catalog Description:
TB810 Modulebus Optical Port
Long Description:
TB810 Modulebus Optical Port
Additional Information
Medium Description:
TB810 Modulebus Optical Port
Product Type:
Communication_Module
