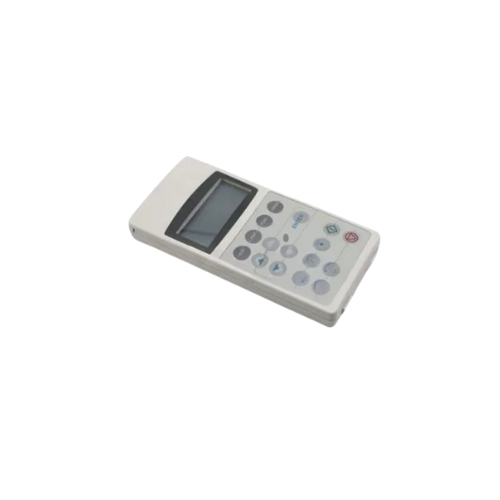

The ABB CDP312R (68281059) is a user-friendly, wall-mounted control panel designed for use with ABB ACS800 series drives. It offers reliable and efficient drive operation through its clear alphanumeric display with backlighting, making it easy to read in various lighting conditions.

This control panel features four function keys that provide quick access to frequently used commands, helping operators manage drive settings with ease. The menu-driven interface allows for intuitive navigation through drive parameters, ensuring smooth setup and operation. Built-in assistants further simplify parameterization and troubleshooting, making it ideal for both new users and experienced technicians.

Technical Specifications:

• Supply Voltage: 24 VDC or 230 VAC
• Power Consumption: Less than 10 W
• Operating Temperature: -10 to 50 °C (14 to 122 °F)
• Storage Temperature: -20 to 70 °C (-4 to 158 °F)
• Protection Class: IP66 (dust-tight and protected against powerful water jets)
• Dimensions: 180 x 144 x 60 mm (7.09 x 5.67 x 2.36 in)
• Weight: 0.7 kg (1.54 lb)
