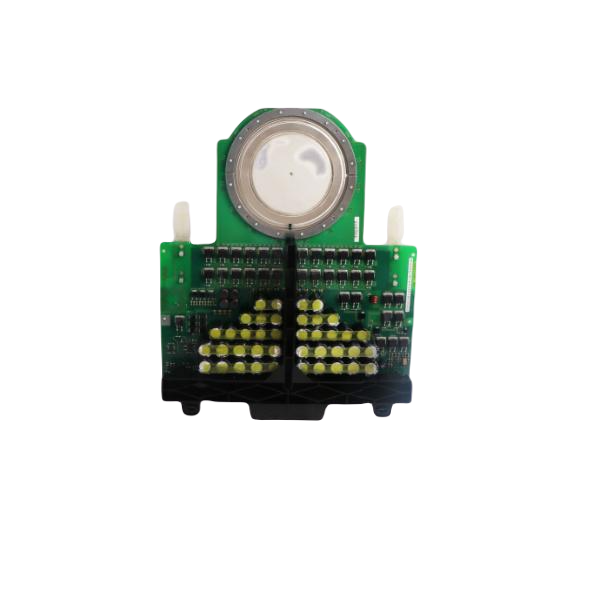

ABB 5SXE04-0150 3BHB003154R0101 / 3BHL000390P0104 – High-Performance IGBT Module Board for Industrial Power Switching

The ABB 5SXE04-0150 3BHB003154R0101 / 3BHL000390P0104 is a robust IGBT (Insulated Gate Bipolar Transistor) module board engineered for high-efficiency power switching in industrial applications. This board integrates multiple IGBTs with gate drivers and protection circuits, enabling reliable performance in systems requiring fast, high-power switching.

Combining the advantages of bipolar junction transistors (BJT) and field-effect transistors (FET), IGBTs offer high voltage handling with low power loss. ABB’s IGBT module board ensures enhanced thermal management, low switching loss, and improved overall efficiency in heavy-duty environments.

Key Applications:

• Industrial motor drives

• Renewable energy inverters (solar/wind)

• Electric vehicle (EV) charging systems

• UPS (Uninterruptible Power Supply)

• HVAC and traction systems

Features:

• Advanced IGBT technology for reliable high-speed switching

• Integrated gate driver and protection circuitry

• Suitable for high-voltage, high-current environments

• Long lifecycle with superior thermal performance
