NBN8-18GM40-Z0-V1
NBN8-18GM40-Z0-V1

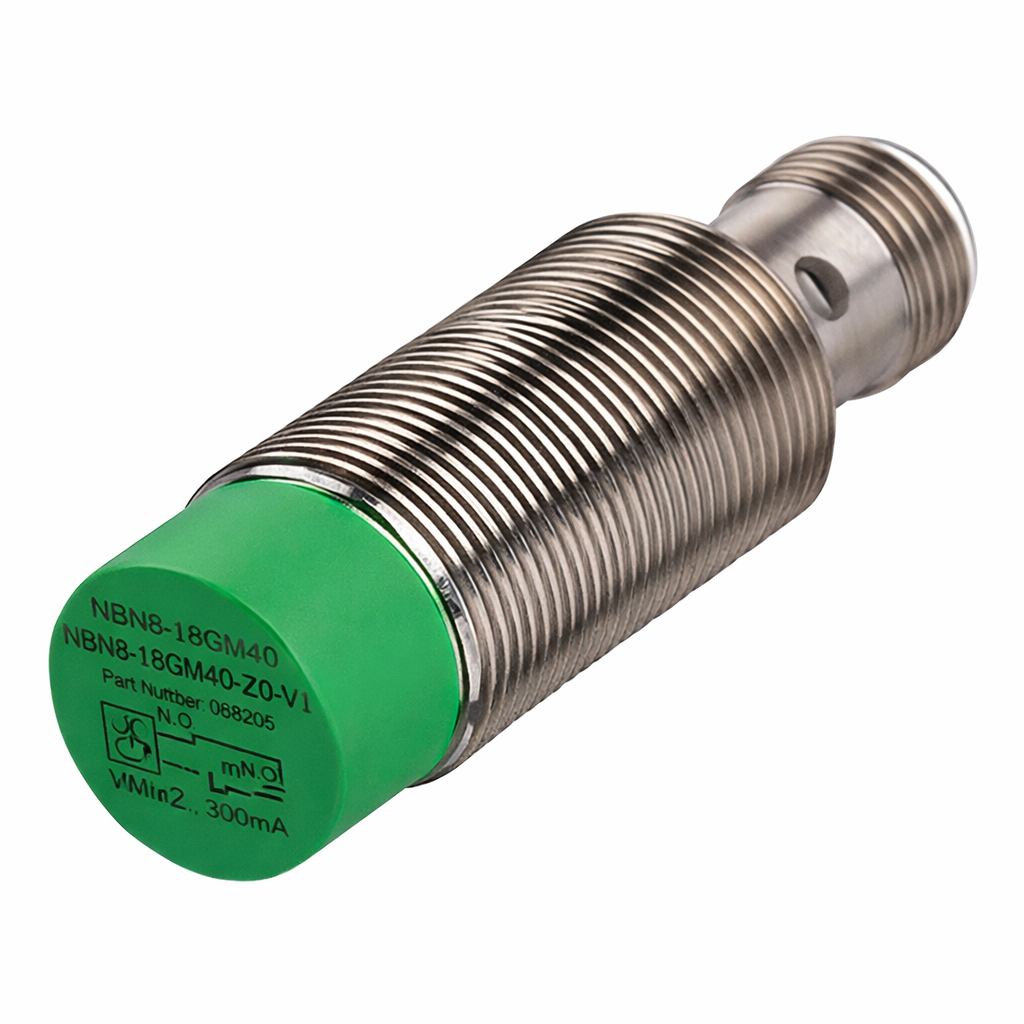

The NBN8-18GM40-Z0-V1 (088205) is a durable inductive proximity sensor for accurate metal detection in industrial automation. Its 18 mm cylindrical design ensures easy installation and reliable performance in demanding conditions. With contactless sensing, it avoids mechanical wear, making it ideal for continuous use. Featuring a 2-wire DC N.O. output and an M12 x 1, 4-pin connector, it integrates seamlessly with control systems while delivering stable signal transmission.
Description
Key Features
- Reliable metal detection with consistent switching
- 8 mm sensing distance for accurate positioning
- Cylindrical 18 mm housing for easy installation
- 2-wire DC, N.O. output for simple wiring
- M12 x 1, 4-pin connector for secure connectivity
- Durable design suited for industrial environments
Typical Applications
- Position detection in automated machinery
- Metal part sensing on assembly lines
- Conveyor and material handling systems
- Packaging and sorting equipment
- Factory automation and process control setups
Technical Specifications
- Product Name: NBN8-18GM40-Z0-V1
- Part Number: 088205
- Sensor Type: Inductive Proximity Sensor
- Body Style: Cylindrical
- Sensing Distance: 8 mm
- Sensor Diameter: 18 mm
- Output Type: 2-wire, DC, Normally Open (N.O.)
- Connection: M12 x 1, 4-pin
- Weight: 78 g
