IS220PPDAH1A, REV C – Power Distribution System Feedback
IS220PPDAH1A, REV C – Power Distribution System Feedback

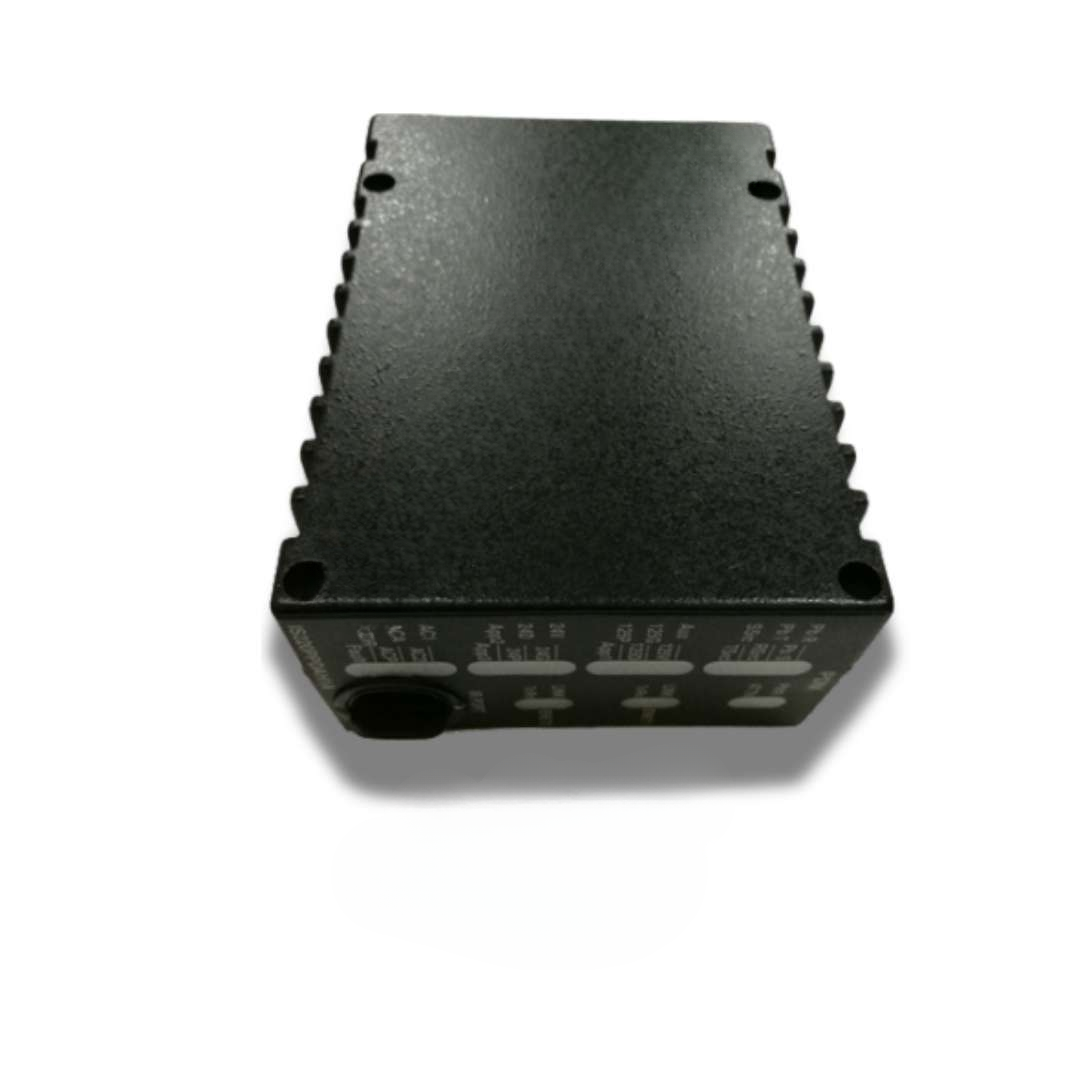

The IS220PPDAH1A, REV C is a Power Distribution System Feedback I/O Module designed for use in GE Mark VIe control systems. It provides reliable voltage and current feedback, enabling accurate power monitoring and control.
Description
The IS220PPDAH1A, REV C is a highly specialized Power Distribution System Feedback I/O Module designed to operate within GE Mark VIe turbine control environments. This module plays a critical role in the reliable collection and transmission of electrical feedback data from the power distribution system, ensuring accurate monitoring and control across turbine or generator applications.
As part of the GE Mark VIe platform, the IS220PPDAH1A is engineered to measure and process analog feedback signals related to voltage, current, and system performance, delivering real-time information back to the main controller. This allows for precise adjustments and helps operators maintain optimal system parameters, safeguard assets, and prevent faults.
The module is equipped with multiple input channels capable of handling feedback from a variety of transducers and sensors. This includes voltage and current transformers used to monitor line loads and distribution networks. The PPDAH1A seamlessly integrates with terminal boards and control packs, serving as a critical data acquisition point for the entire turbine control system.
In REV C, enhancements have been made to improve overall signal integrity, stability, and noise immunity. These updates contribute to greater control accuracy and longer operational life under challenging environmental conditions.
The IS220PPDAH1A also features robust diagnostic capabilities, including LED status indicators for each input channel, making it easy to detect faults or abnormal conditions. These diagnostics reduce troubleshooting time and enhance system reliability.
Designed for high-performance turbine systems in power generation, oil and gas, and heavy industrial sectors, this I/O module ensures that power distribution data is accurately captured and transmitted, enabling better decision-making and automated control processes.
With its compact design, high input resolution, and proven reliability, the IS220PPDAH1A, REV C supports both safety and efficiency in critical turbine operations where real-time electrical monitoring is essential.
Key Features:
Power distribution system feedback I/O module
Designed for GE Mark VIe control systems
Collects voltage and current feedback data
Enhanced signal processing and noise reduction (REV C)
Multi-channel input support for CT and VT connections
Real-time data transmission to controllers
LED indicators for status and diagnostics
Compact and durable industrial environments
Ideal for power generation and heavy industrial applications
