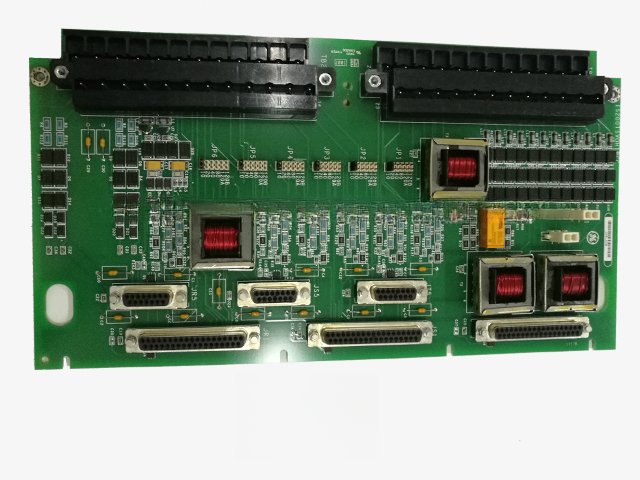

IS200TSVOH1BCC – Servo Terminal Board
IS200TSVOH1BCC – Servo Terminal Board
The IS200TSVOH1BCC is a GE Mark VIe Servo Terminal Board designed to provide reliable interface connections between servo valve actuators and the turbine control system. It ensures accurate signal transmission, stability, and control in industrial turbine applications.
Description
The IS200TSVOH1BCC is a Servo Terminal Board developed by General Electric (GE) as part of the Mark VIe series of turbine control systems. This board is specifically designed to serve as the interface between the main control module and the electro-hydraulic servo valves that operate turbine components such as steam or gas valves.
Functioning as a critical connection point, the IS200TSVOH1BCC handles both the signal and power pathways required for precise servo control. Its main function is to facilitate the control and feedback communication between the turbine controller and the hydraulic servo actuators, enabling fine-tuned adjustments in real-time. This precise control helps enhance the efficiency, responsiveness, and safety of turbine operations.
Engineered with high-quality components, the board provides stable operation and is capable of operating in high-vibration and high-temperature environments typical of turbine enclosures. It features multiple connection terminals to accommodate the various input and output signals, including those from LVDTs (Linear Variable Differential Transformers), current loop feedbacks, and control command signals.
The IS200TSVOH1BCC is built for reliability and ease of maintenance. It integrates seamlessly into GE’s Mark VIe systems and can be installed as a direct replacement or upgrade component. Clear terminal labeling and standard mounting provisions reduce installation time and minimize wiring errors. With a compact layout and rugged construction, the board is well-suited for long-term deployment in demanding industrial environments.
This board is widely used in gas and steam turbine systems in power plants and other heavy industrial applications. Its ability to maintain signal integrity ensures consistent actuator performance and contributes to the safe and optimized operation of the turbine system.
Key Features:
Designed for GE Mark VIe turbine control systems
Interfaces directly with servo valve actuators
Supports LVDT and command signal connections
Provides stable, accurate signal processing
Compact, durable, and vibration-resistant design
Easy terminal access for quick installation and servicing
Compatible with gas and steam turbine applications
Ensures real-time control accuracy and reliability
