IS200TDBTH6ABC – T DISCRETE BOARD TMR
IS200TDBTH6ABC – T DISCRETE BOARD TMR

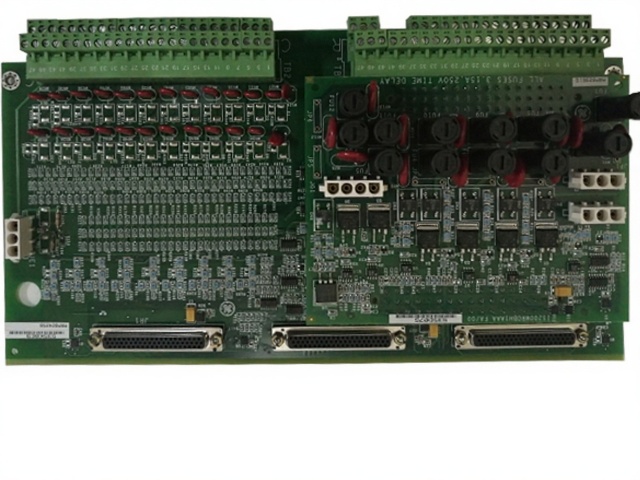

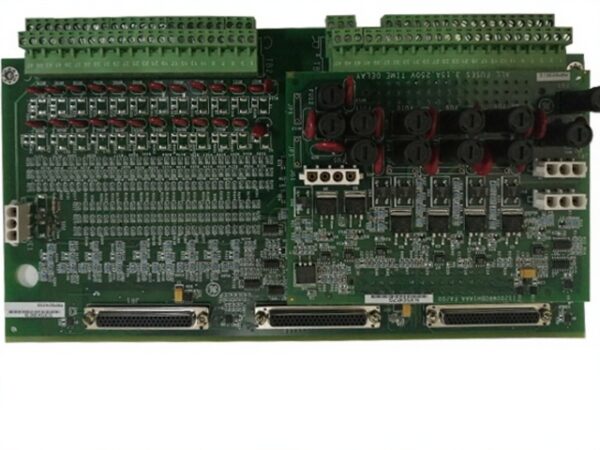

The IS200TDBTH6ABC T Discrete Board TMR is a high-reliability input/output board from GE, specifically designed for GE Mark VI turbine control systems. It provides Triple Modular Redundancy (TMR) support for discrete signal processing, ensuring optimal safety, fault tolerance, and reliability in critical industrial environments.
Description
The IS200TDBTH6ABC – T Discrete Board TMR is an advanced control system component manufactured by General Electric (GE) for use in Mark VI turbine control systems. This board is specifically engineered to handle discrete input and output signals in a Triple Modular Redundancy (TMR) configuration. TMR is crucial for critical operations where system safety, signal reliability, and error correction are non-negotiable.
The IS200TDBTH6ABC board acts as a bridge between the turbine control software and external hardware, collecting and transmitting digital (on/off) signals such as switch statuses, alarms, interlocks, and trip signals. What sets this module apart is its ability to process these signals across three redundant channels (R, S, and T), providing fault-tolerant performance. Even if one or two channels fail, the system continues to function with minimal impact.
Each TMR path processes signals independently and compares outcomes in real-time to validate operational integrity. This makes the IS200TDBTH6ABC TMR Discrete Board ideal for critical turbine protection applications where any malfunction or misread signal could lead to costly downtime or safety hazards.
This module features gold-plated connectors, durable PCB construction, and secure mounting capabilities suitable for rugged industrial environments. It is designed to integrate seamlessly into GE’s Mark VI VME rack-based architecture and can be paired with I/O terminal boards for extended configurations.
At Evaflux Private Limited, we provide genuine IS200TDBTH6ABC modules that are quality-tested and ready for deployment. Whether you are replacing a failed board or upgrading your turbine system, we ensure reliable supply, technical support, and global shipping.
🧰 Key Features:
Compatible with GE Mark VI turbine control systems
Supports Triple Modular Redundancy (TMR) for high-reliability applications
Processes discrete input/output signals with fault-tolerant logic
Three isolated signal paths (R/S/T) for error correction
Durable industrial-grade PCB and edge connectors
Easy integration into VME chassis
Ideal for safety-critical turbine operations
Available from Evaflux Private Limited with testing and warranty support
📞 Contact us: +91 7303573946
📧 Email: support@evaflux.com
Valfux Electric Private Limited is a professional supplier specializing in original brand-new PLC and DCS automation parts from world-renowned manufacturers. Our extensive inventory features trusted brands such as Allen Bradley, Bently Nevada, Honeywell, ABB, GE Fanuc, Siemens, Invensys Triconex, ICS Triplex, Foxboro, Yokogawa, Schneider Electric, HIMA, and more.
Know more about our products and services on evaflux.com and get the update on latest products and services anywhere worldwide. Read more…
