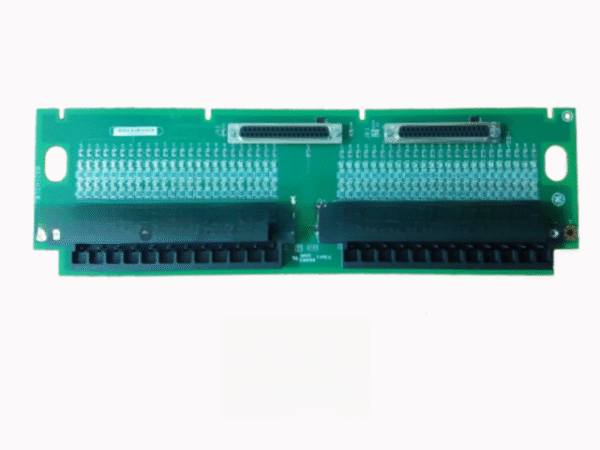

The IS200TBTCH1C is a Thermocouple Input Terminal Board developed by General Electric for use within the Mark VI and Mark VIe control platforms. This board plays a vital role in acquiring temperature data from connected thermocouple sensors and delivering that information directly to the turbine control system for real-time monitoring and adjustment.

This terminal board supports multiple thermocouple types, such as Type E, J, K, and T, allowing it to be used in a variety of turbine applications where precise temperature feedback is essential. It features dedicated input channels, each with high-quality cold junction compensation circuitry to ensure accurate readings regardless of ambient conditions. The IS200TBTCH1C helps maintain the accuracy and stability of temperature signals even in challenging industrial environments, such as those with high vibration or electrical noise.

The board is built for rugged use, with durable construction and clearly labeled terminal points that make installation and maintenance straightforward. Its compact size allows for easy integration within the control cabinet, and its wiring layout is optimized for neat and efficient routing of thermocouple connections.

Commonly used in steam and gas turbine systems, the IS200TBTCH1C provides critical temperature data that supports functions such as combustion control, bearing temperature monitoring, and exhaust temperature regulation. With its precise signal acquisition and reliable performance, the board contributes significantly to safe and efficient turbine operation.

This board is compatible with various turbine models in both retrofit and new installations. Whether you are maintaining an existing GE turbine control system or planning a system upgrade, the IS200TBTCH1C provides a cost-effective and reliable solution for thermocouple signal management.

Key Features:

• Supports multiple thermocouple types (E, J, K, T)

• High-accuracy cold junction compensation

• Designed for GE Mark VI and Mark VIe systems

• Reliable signal transmission for temperature monitoring

• Robust construction suited for harsh environments

• Easy installation with labeled terminals

• Enables real-time control adjustments based on temperature data

• Ideal for combustion, exhaust, and bearing temperature monitoring
