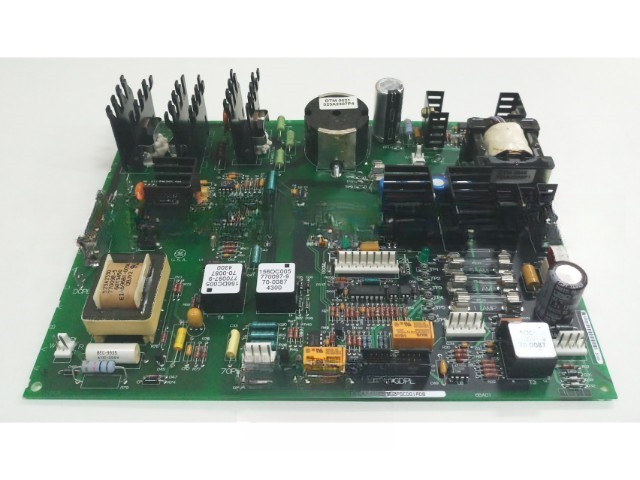

IS200PSCDG1ADB – PWM Power Supply / Contractor Driver Board
IS200PSCDG1ADB – PWM Power Supply / Contractor Driver Board
The IS200PSCDG1ADB is a GE Excitation 2100e board combining PWM power supply and contactor driver functions, delivering stable power, precise switching, and robust protection for industrial excitation systems.
Description
The IS200PSCDG1ADB – PWM Power Supply / Contactor Driver Board is a high-performance control and power management module used in the GE Excitation 2100e system. This board combines PWM (Pulse Width Modulation) power supply regulation with advanced contactor driver capabilities, ensuring efficient power conversion, precise control, and reliable operation of connected excitation components. It plays a critical role in delivering stable DC power to various subsystems while managing the actuation of contactors for switching and protection purposes.
Built with high-quality components, the IS200PSCDG1ADB offers robust protection features against voltage spikes, overcurrent, and electrical noise, making it suitable for harsh industrial environments. Its design supports efficient thermal management, reduced power losses, and long operational life. The module ensures seamless integration within GE excitation control systems, contributing to overall system stability and performance.
The PWM technology ensures smooth and efficient voltage regulation, reducing energy losses and minimizing thermal stress on connected equipment. The contactor driver section is engineered to deliver accurate, responsive control signals to high-power contactors, ensuring safe and efficient switching of generator circuits during operation, maintenance, or emergency shutdowns.Built for continuous industrial operation, the board features advanced protective mechanisms such as overvoltage suppression, short-circuit protection, thermal management, and EMI/RFI filtering. This ensures both the longevity of the board itself and the safety of connected components. The robust construction and industrial-grade components allow it to withstand harsh operating environments found in power plants, hydroelectric stations, and industrial motor control rooms.
The IS200PSCDG1ADB is built with industrial-grade components to withstand demanding environments, offering protection features such as overvoltage suppression, overcurrent limiting, and noise filtering for enhanced system reliability. Its compact, modular design allows easy integration into GE Excitation 2100e systems, reducing downtime and simplifying maintenance.
Key Features:
Integrated PWM power supply for efficient energy conversion
Contactor driver functionality for controlled switching operations
Overvoltage and overcurrent protection for improved safety
Designed for use in GE Excitation 2100e systems
High reliability and durability in industrial environments
Optimized thermal dissipation for extended lifespan
