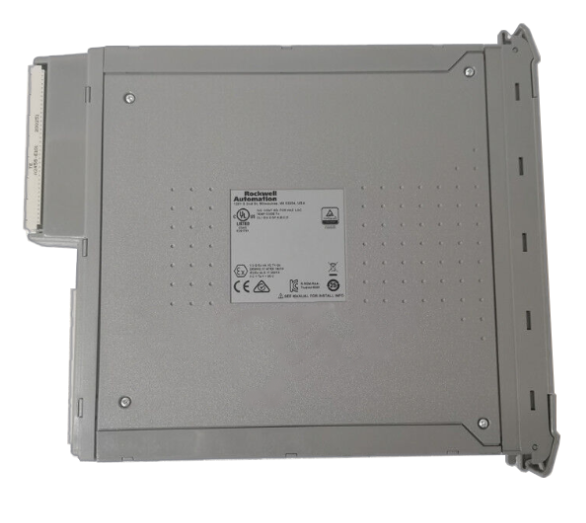

ICS TRIPLEX T8461C Trusted TMR 24/48Vdc Digital Output
ICS TRIPLEX T8461C Trusted TMR 24/48Vdc Digital Output
Trusted TMR 24/48Vdc Digital Output Module Technical Specifications:
Input Voltage Range: 24Vdc to 48Vdc
Output Type: Digital
Redundancy Architecture: Triple Modular Redundant (TMR)
Diagnostics:
Individual channel health monitoring.
Output status and error reporting.
Environment Tolerance:
Operating temperature: -20°C to +70°C
Shock and vibration resistant.
Mounting: Fits standard Trusted system racks.
Certifications:
Certified for safety-critical applications such as SIL 3 according to IEC 61508.
Description
The ICS TRIPLEX T8461C Trusted TMR Digital Output Module is a high-reliability output solution designed for safety-critical industrial control systems. Operating at 24 Vdc and 48 Vdc, this module is part of the Trusted™ Triple Modular Redundancy (TMR) platform, ensuring dependable and fault-tolerant digital output control in demanding environments.
The T8461C provides 40 digital output channels, enabling direct control of field devices such as actuators, relays, and valves. Each output channel uses a triple-redundant architecture, allowing the system to continue operating correctly even if a single path or component fails. This design significantly improves system availability and operational safety.
Advanced automatic diagnostics and continuous self-testing help detect wiring issues such as open circuits, short circuits, and load faults. Built-in overcurrent protection safeguards connected devices, while onboard Sequence of Events (SOE) recording with 1 ms resolution supports precise event analysis and troubleshooting. Fully compatible with Trusted™ systems and compliant with safety standards, the ICS TRIPLEX T8461C is ideal for industries such as oil & gas, power generation, and chemical processing.
Key Features
Trusted™ TMR digital output module for safety-critical systems
24 Vdc / 48 Vdc output voltage support
40 digital output channels per module
Triple Modular Redundancy for high fault tolerance
Automatic diagnostics and continuous self-testing
Line monitoring for open and short circuit detection
Built-in overcurrent protection per channel
Onboard SOE reporting with 1 ms resolution
Designed for harsh industrial environments
