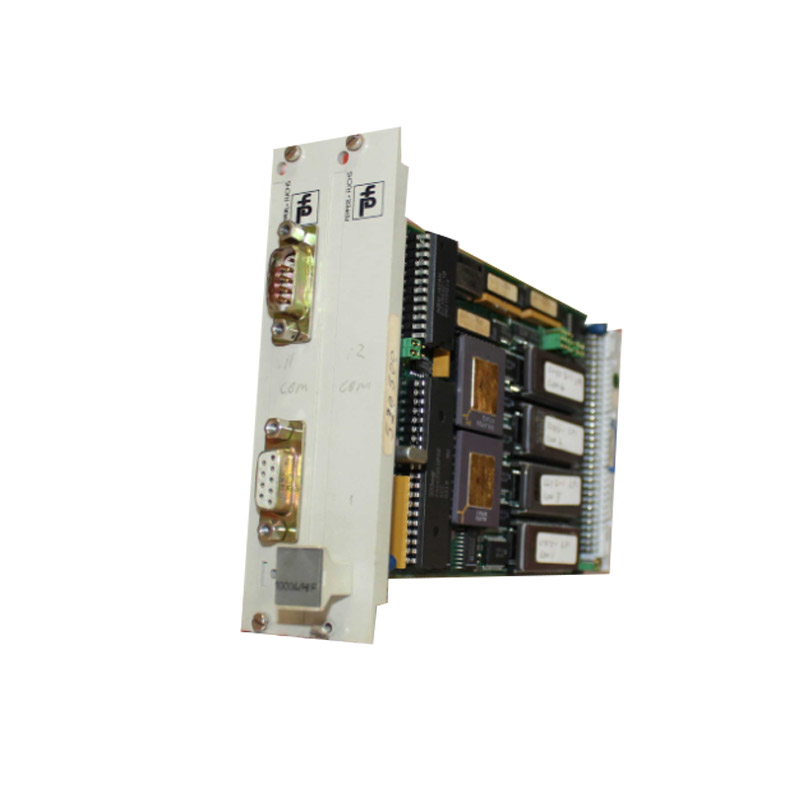

Honeywell 10004/1/1 COM Module – Versatile Communication Solution for FSC Systems
The Honeywell 10004/1/1 COM Module is a reliable and adaptable communication module designed specifically for Honeywell Fault Tolerant Control Systems (FSC). Engineered for seamless data exchange across complex industrial networks, this module ensures consistent and secure communication between redundant central units, master-slave systems, FSC user stations, integrated control systems, and external devices like printers.
With support for multiple serial communication protocols—including RS422, RS232C, RS485, current loop, and glass fiber—the Honeywell 10004/1/1 is highly versatile and suitable for a wide range of control environments. It delivers dependable data transmission, making it ideal for safety-critical applications in industries such as oil and gas, power generation, and chemical processing.
The module features a compact 8 TE, 3 HE (8 HP, 3U) design, allowing for efficient installation even in space-constrained control cabinets. It operates on a 5 VDC power supply, consuming 1150 mA without interface loads, and maintains excellent power stability with a ripple content of less than 50 mV p-p.
Built to meet international safety and quality standards, the 10004/1/1 communication module is CE, TÜV, and UL certified, giving operators peace of mind when deploying it in mission-critical systems. Additionally, it is compatible with all software versions, ensuring long-term support and simplified integration into both legacy and modern control infrastructures.
Key Features:
Supports RS422, RS232C, RS485, current loop, and glass fiber communication
Ideal for FSC redundant and master-slave system configurations
Ensures reliable data exchange with external systems and FSC user stations
Compact form factor: 8 TE, 3 HE (8 HP, 3U)
Operates on 5 VDC / 1150 mA with low ripple
Certified by CE, TÜV, and UL
Fully compatible with all software versions
For pricing, availability, or technical assistance, contact Evaflux at +91 7303573946 or email support@evaflux.com.
