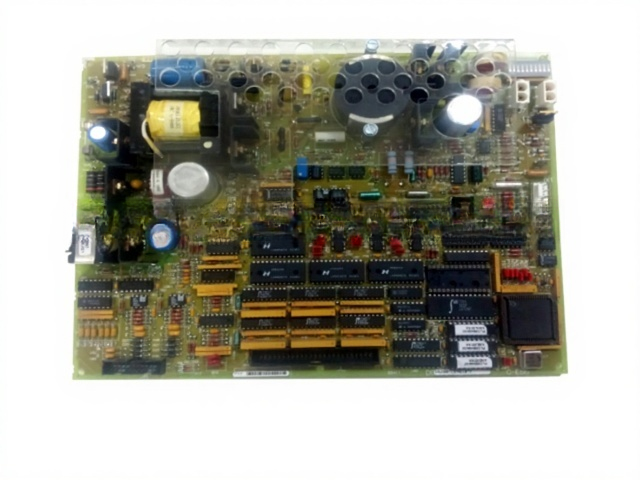

The DS200TCEAG1BSF Emergency Overspeed Board is a critical safety component in the GE Mark V Speedtronic turbine control system. Designed to detect and respond to turbine overspeed and flame failure conditions, this board helps prevent costly mechanical failures and ensures the safe shutdown of turbines during abnormal operating scenarios.

At its core, the DS200TCEAG1BSF is powered by a reliable Intel 80196 microprocessor, which delivers fast, real-time monitoring and trip decision-making. It is equipped with PROM modules that store system-specific configurations, enabling smooth firmware updates and easy replacement without the need for complete reprogramming.

The board features three onboard fuses for circuit protection and 30 configurable jumpers that allow operators to tailor its settings to match their specific turbine application. Its bayonet-style connectors ensure a secure connection and make the board easy to install or replace, reducing downtime and simplifying maintenance tasks.

Typically mounted in the P1 core of the Mark V control cabinet, the DS200TCEAG1BSF interfaces with other Speedtronic boards to form a reliable and integrated turbine safety system. It is used extensively in gas and steam turbines across industries such as power generation, oil and gas, and industrial automation, where high-speed protection and operational reliability are essential.

Whether you’re replacing an existing board or upgrading your protection system, the DS200TCEAG1BSF offers a trusted solution with proven performance in demanding environments.

The DS200TCEAG1BSF is a proven solution for customers seeking reliable, configurable, and fast-acting overspeed protection within the Mark V platform.

Technical Highlights (Recap)

• ✅ Microprocessor: Intel 80196 for high-speed logic control

• ✅ Firmware: PROM modules for storing user configuration and logic

• ✅ Trip Logic: Monitors overspeed and flame failure with instant shutdown capability

• ✅ Connectivity: Bayonet connectors for fast and secure wiring

• ✅ User Configuration: 30 jumpers and 3 fuses onboard for customizable protection

• ✅ System Placement: Fits into the P1 core section of the GE Mark V control cabinet

• ✅ Applications: Ideal for gas turbines, steam turbines, and industrial rotating machinery
