Description

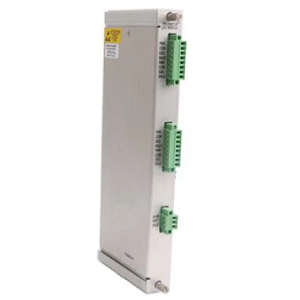

The Bently Nevada 3500/32M 4-Channel Relay Module is a full-height, high-performance module engineered to provide four independent relay outputs within the 3500 Machinery Protection System. Designed for critical machinery monitoring and protection, this versatile relay module offers programmable alarm logic and can be placed in any slot to the right of the Transient Data Interface (TDI) Module in the 3500 rack.

Each of the four relays on the 3500/32M module can be independently configured with custom voting logic and Alarm Drive Logic (ADL) using AND/OR logic expressions. This allows for highly flexible and intelligent alarm triggering based on user-defined conditions. Whether you need to initiate shutdowns, activate alarms, or trigger safety systems, this module provides real-time, reliable response based on complex sensor input relationships.

The module is ideal for industries such as oil & gas, power generation, manufacturing, and chemical processing, where precise monitoring and timely response are critical. Its robust design ensures continuous operation in harsh industrial environments, while maintaining compatibility with Bently Nevada’s advanced condition monitoring infrastructure.

Key Features:

• Full-height design for use with 3500 Series racks

• Four independently programmable relay outputs

• Custom voting logic for each output

• Alarm Drive Logic supports AND/OR logic

• Ideal for safety interlocks, system shutdowns, and alarm activations

• Easily configured through System 1 or 3500 configuration software

• Reliable performance in demanding environments

The Bently Nevada 3500/32M 4-Channel Relay Module offers unmatched flexibility and reliability for critical equipment protection and control.
