Description

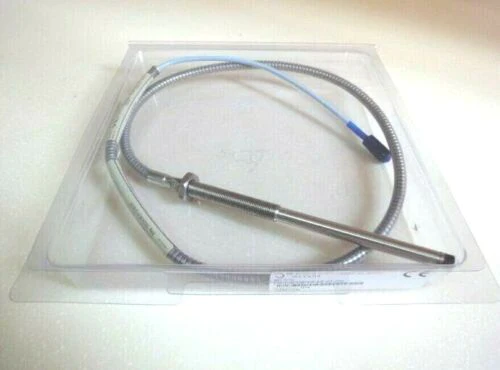

The Bently Nevada 330103-00-12-10-02-CN is a high-performance 3300 XL 8 mm Proximity Transducer System designed for accurate vibration and position monitoring in industrial rotating machinery. This complete system includes:

• 3300 XL 8 mm proximity probe

• 3300 XL extension cable

• 3300 XL Proximitor® Sensor

It provides an output voltage directly proportional to the gap between the probe tip and a conductive surface, enabling both static (position) and dynamic (vibration) measurements. Engineered for fluid-film bearing machines, it is also ideal for Keyphasor® and rotational speed monitoring.

The 3300 XL system is compliant with API 670 4th Edition, offering superior linearity, accuracy, and temperature stability across its 5-meter system. Components are fully interchangeable—no individual matching or bench calibration required—making it a cost-effective and flexible solution for machine condition monitoring.

This transducer system is backward compatible with legacy non-XL 3300 5 mm and 8 mm components, allowing integration into existing setups with minimal modifications. For space-constrained installations, a 5 mm probe alternative is available.

Key Features:

• Complete system: probe, extension cable, and Proximitor® Sensor

• API 670 4th Edition compliant (mechanical and performance)

• Performs vibration, position, Keyphasor®, and speed measurements

• Fully interchangeable components—no calibration needed

• Backward compatible with older 3300 series transducers

• Ideal for fluid-film bearing machines and critical asset monitoring
