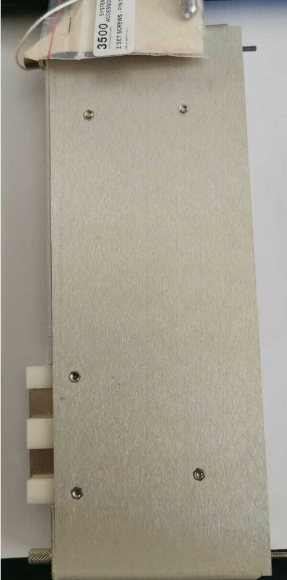

BENTLY NEVADA 136719-01 3500/04 Earthing I/O Module
BENTLY NEVADA 136719-01 3500/04 Earthing I/O Module
Brand: Bently Nevada
Model Number: 136719-01
Part Number: 136719-01
Condition ：Brand NEW & in Stock
Type: Earthing I/O Module
Product Origin: USA
Payment: T/T, Western Union, Credit Card
Dimensions: 241.3 mm x 24.4 mm x 163.1 mm
Weight: 0.46 kg (1.01 lb)
Certificate: UL, CSA
Warranty: 1 year
Description
The Bently Nevada 136719-01 Earthing I/O Module is an intrinsically safe (IS) earthing solution designed for use with the 3500 Machinery Protection System. This module provides the necessary IS earth connection directly through the system backplane, eliminating the need for external earthing hardware in hazardous environments.
Specifically developed for installations where transducer systems operate in classified hazardous areas, the 136719-01 enhances safety and system integration without compromising performance. Unlike external barriers that can degrade system integrity, this internal earthing module is fully compatible with 3500 Internal Barriers, ensuring high reliability.
The module occupies a dedicated I/O slot, reducing the available monitor positions in a standard 19-inch rack from 14 to 13. However, this trade-off delivers superior intrinsic safety compliance and simplifies system design—making it a practical and cost-effective solution for process industries requiring safe equipment grounding.
Key Features:
Provides an intrinsically safe earth connection via the 3500 system backplane
Designed for use in hazardous area installations with transducer systems
Occupies a dedicated I/O slot, limiting the rack to 13 monitor positions
Fully compatible with Bently Nevada’s 3500 Internal Barriers
Simplifies compliance with safety standards for IS installations
No signal degradation—unlike external safety barriers
Technical Specifications:
Model Number: 136719-01
System Compatibility: Bently Nevada 3500 Series
Function: Intrinsically Safe Earth connection
Installation: Occupies a single I/O slot in a 3500 rack
Rack Limitation: Reduces standard rack capacity to 13 monitor positions
Use Case: Hazardous area installations, IS transducer systems
Applications:
Oil & gas facilities with explosive environments
Petrochemical plants and process automation systems
Industrial machinery requiring IS-certified monitoring solutions
Installations with multiple transducers in hazardous zones
Benefits:
Enhances system safety by providing proper IS grounding
Reduces installation complexity by avoiding external barriers
Maintains system performance and monitoring reliability
Cost-effective IS compliance for critical industrial setups
Seamless integration with existing 3500 modules and barriers
