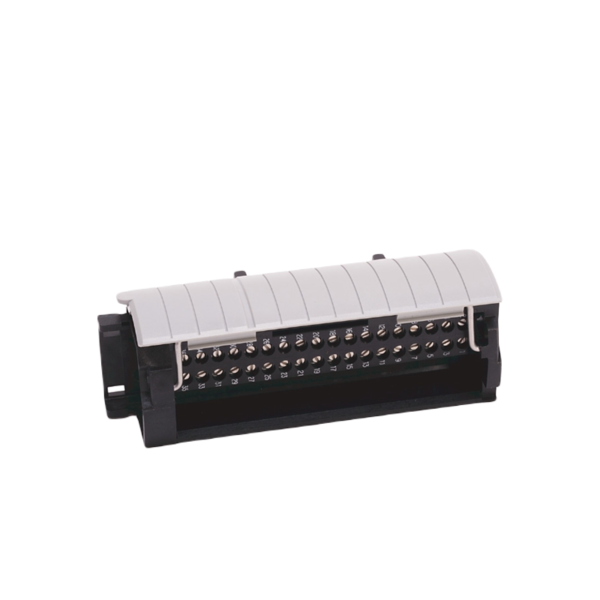

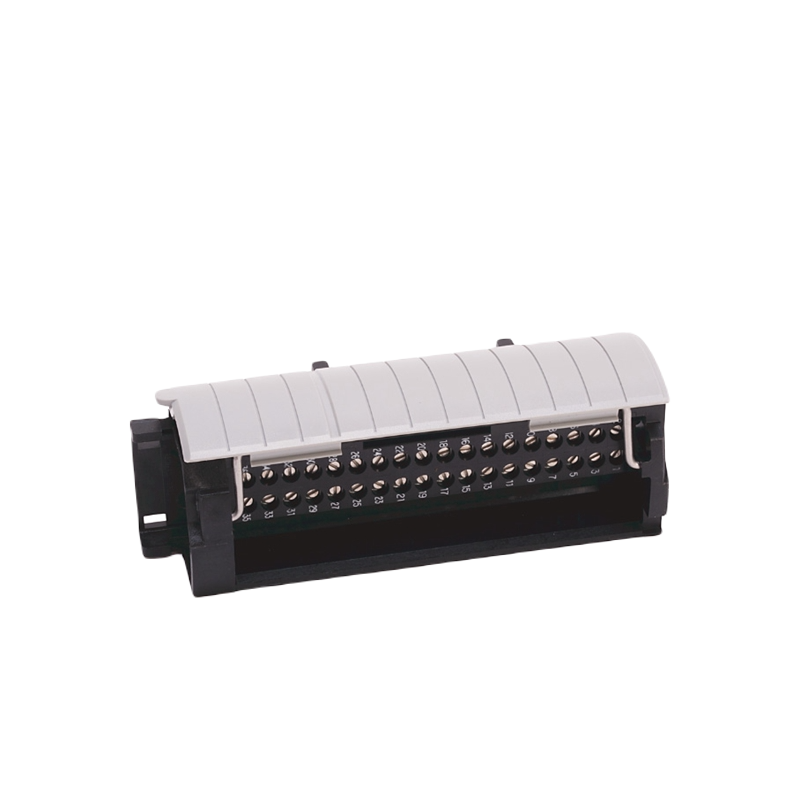

Allen Bradley 1756-TBE Original Packaging Module in Stock
Allen Bradley 1756-TBE Original Packaging Module in Stock
Brand: Allen Bradley
Model Number: 1756-TBE
Part Number: 1756-TBE
Type: Extended Depth Terminal Block Housing
Mounting: Screw Clamp or Spring Clamp
Temperature Rating: 0 – 60 DEG C
Screwdriver Width: 5/16 IN
Number of Terminals: 23 (14 AWG) or 36 (18 AWG)
Description
The Allen Bradley 1756-TBE Terminal Block Housing is a durable, extended-depth terminal block designed for use with the 1756 ControlLogix PLC system. Engineered for easy and secure connections to external field devices, this terminal block housing supports a wide range of industrial applications. With options for screw clamp or spring clamp mounting and compatibility for 14 AWG or 18 AWG wire, it offers versatility, reliability, and convenience in a compact form.
🔧 Key Features of the Allen Bradley 1756-TBE:
Extended-depth terminal block housing for added installation space
23 terminals (14 AWG) or 36 terminals (18 AWG) for flexible wiring
Mounting options: screw clamp or spring clamp for secure connections
Temperature rating: 0°C to 60°C (32°F to 140°F) for industrial environments
Front-to-back depth:
Standard: 147.91 mm (5.823 in)
Extended: 157.43 mm (6.198 in)
Screwdriver width: 5/16 inch – designed for safe, easy maintenance
🏭 Applications:
The 1756-TBE terminal block housing is ideal for connecting field I/O devices in a variety of automation and control systems:
Industrial Automation
Machine Control
Process Control
Building Automation
Robotics and Motion Systems
📊 Technical Specifications:
| Specification | Details |
|---|---|
| Brand | Allen Bradley |
| Model Number / Part Number | 1756-TBE |
| Type | Extended Depth Terminal Block Housing |
| Mounting Options | Screw Clamp or Spring Clamp |
| Temperature Range | 0 – 60°C (32 – 140°F) |
| Screwdriver Width | 5/16 inch |
| Number of Terminals | 23 (14 AWG) or 36 (18 AWG) |
| Depth (Front to Back) | 157.43 mm (6.198 in) – Extended |
✅ Benefits of the 1756-TBE Terminal Block Housing:
Flexible Wiring: Accommodates different wire gauges and terminal counts
Space-Efficient Design: Extended depth allows for better cable management
High Reliability: Secure mounting ensures stable, long-term performance
Enhanced Safety: Standard screwdriver width minimizes damage risk
Wide Compatibility: Seamlessly integrates with Allen Bradley 1756 ControlLogix systems
🏁 Conclusion:
The Allen Bradley 1756-TBE Terminal Block Housing is a high-quality solution for field wiring and device connection in ControlLogix PLC systems. With extended depth, robust mounting options, and flexible wiring configurations, this module offers the ideal combination of performance, safety, and efficiency for demanding industrial environments.
