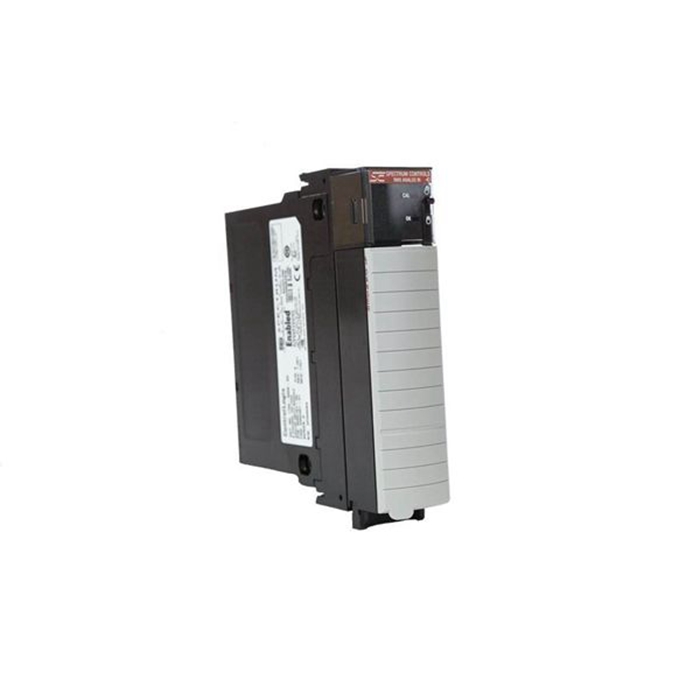

The Allen Bradley 1756-IF16H Original Packaging Module is a high-density, high-performance analog input module designed to meet the demands of modern industrial automation systems. Engineered for precision, reliability, and seamless integration with ControlLogix platforms, this module ensures efficient and accurate data acquisition across a wide range of applications.

Key Features

• 16 Analog Input Channels – Supports high-volume data acquisition for complex systems

• 16-Bit High-Resolution Conversion – Delivers precise and reliable analog signal measurements

• Wide Input Range Compatibility – Supports both voltage and current input configurations

• Modular, Space-Saving Design – Facilitates easy installation, upgrades, and system expansion

• LED Status Indicators – Enables quick diagnostics and real-time monitoring

Industrial Applications
Ideal for automation environments requiring scalable, accurate input solutions, including:

• Temperature and Pressure Monitoring

• Flow Rate and Fluid Level Measurement

• Motor Speed and Position Control

• Process Optimization in Manufacturing and Chemical Plants

• Laboratory Data Acquisition in R&D Facilities

Technical Specifications

• Number of Channels: 16 Analog Inputs

• Input Type: Configurable Voltage or Current

• Input Range: Flexible per channel (voltage or current)

• Resolution: 16-bit for high accuracy

• Conversion Rate: 10 ms per channel

• Accuracy: ±0.1% of full scale

• Isolation: Channel-to-channel and channel-to-backplane isolation

• Operating Temperature: 0 to 60°C (32 to 140°F)

• Power Supply: 5V DC from backplane

Module Benefits

• Exceptional Accuracy and Stability – Ideal for precision-critical applications

• Flexible Sensor Compatibility – Easily adapts to a wide variety of industrial sensors

• Modular Integration – Simplifies system configuration and expansion

• Rugged Construction – Built to withstand harsh industrial conditions

• Seamless Allen Bradley Compatibility – Ensures quick integration with ControlLogix systems

Conclusion
The Allen Bradley 1756-IF16H Analog Input Module is a top-tier solution for advanced analog input needs in industrial automation. With its high-resolution performance, robust design, and flexible configuration, it provides reliable and accurate monitoring that enhances productivity and process efficiency. Perfect for industries where precision and scalability are paramount.
