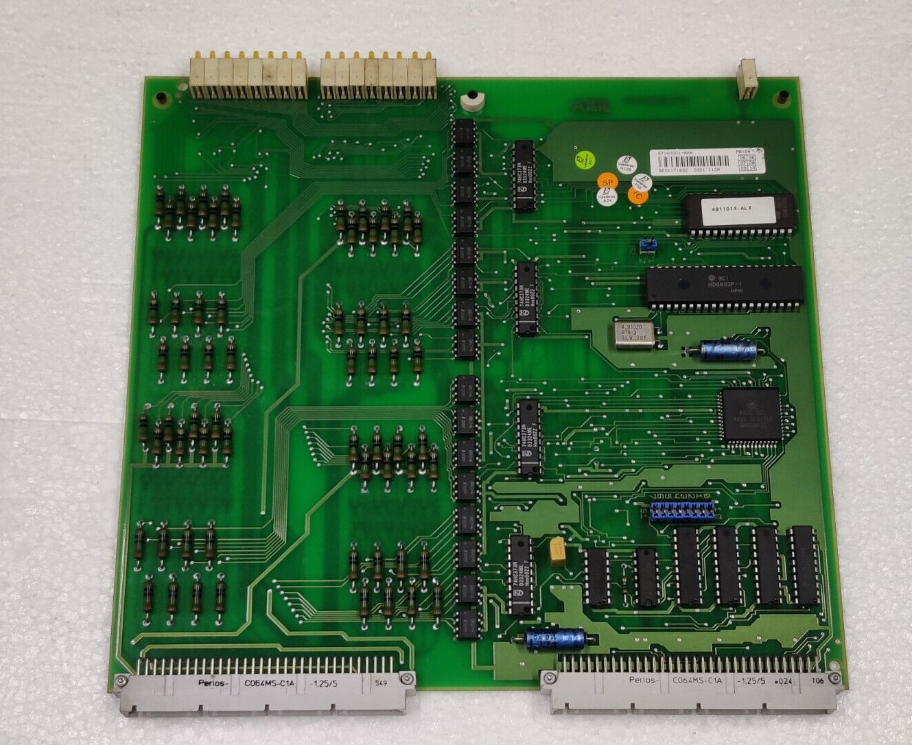

ABB 57160001-AAA DSDI 110A Digital Input Board
ABB 57160001-AAA DSDI 110A Digital Input Board
Manufacturer: ABB
Product No.: 57160001-AAA
Product Type: Digital Input Board
Product Origin: Switzerland
Number of Input Channels: 32
Input Voltage: 24 VDC
Isolation: Opto-isolated
Event Detection: Yes
Dimensions: 216 mm x 18 mm x 225 mm (Net)
Weight: 0.34 kg (Net)
Approvals: CE, RoHS
Description
ABB DSDI 110A Digital Input Board – 32 Channel 24 VDC | 57160001-AAA
Optimize your industrial control systems with the ABB DSDI 110A Digital Input Board (57160001-AAA). This high-performance module offers 32 opto-isolated digital input channels (4 groups of 8) operating at 24 VDC, designed for both scanning and event-detection via interrupts. Built to meet demanding industrial standards, the DSDI 110A ensures reliable input signal management, enhanced system flexibility, and long-term durability. Exempt from RoHS under specific provisions, it’s ideal for critical applications within ABB’s Advant Master Process Control Systems.
Key Features:
Model: DSDI 110A
Product ID: 57160001-AAA
Input Type: Digital Input (DI)
Number of Channels: 32
Voltage: 24 VDC
Channel Grouping: 4 groups of 8 channels
Signal Detection: Scanning or interrupt-controlled
Compliance: RoHS-exempt (2011/65/EU Article 2(4)(c),(e),(f),(j))
Product Type: I/O Module
Manufacturer: ABB – Global leader in automation and control technologies
Technical Specifications:
Dimensions: 216 mm (L) × 18 mm (H) × 225 mm (W)
Net Weight: 0.34 kg
HS Code: 85389099
WEEE Category: Small Equipment (No external dimension over 50 cm)
Applications:
Perfect for industrial automation, process control, event-driven systems, and applications requiring high-speed and reliable digital input processing.
